Statistics Log
In the traffic control screen (Basic/Section Control), it provides the details of the services currently in operation, and since actual traffic control is underway, it is difficult to prematurely manipulate data queries.
Therefore, NetFUNNEL provides a statistics screen to ensure that the traffic control service set up is operating smoothly.

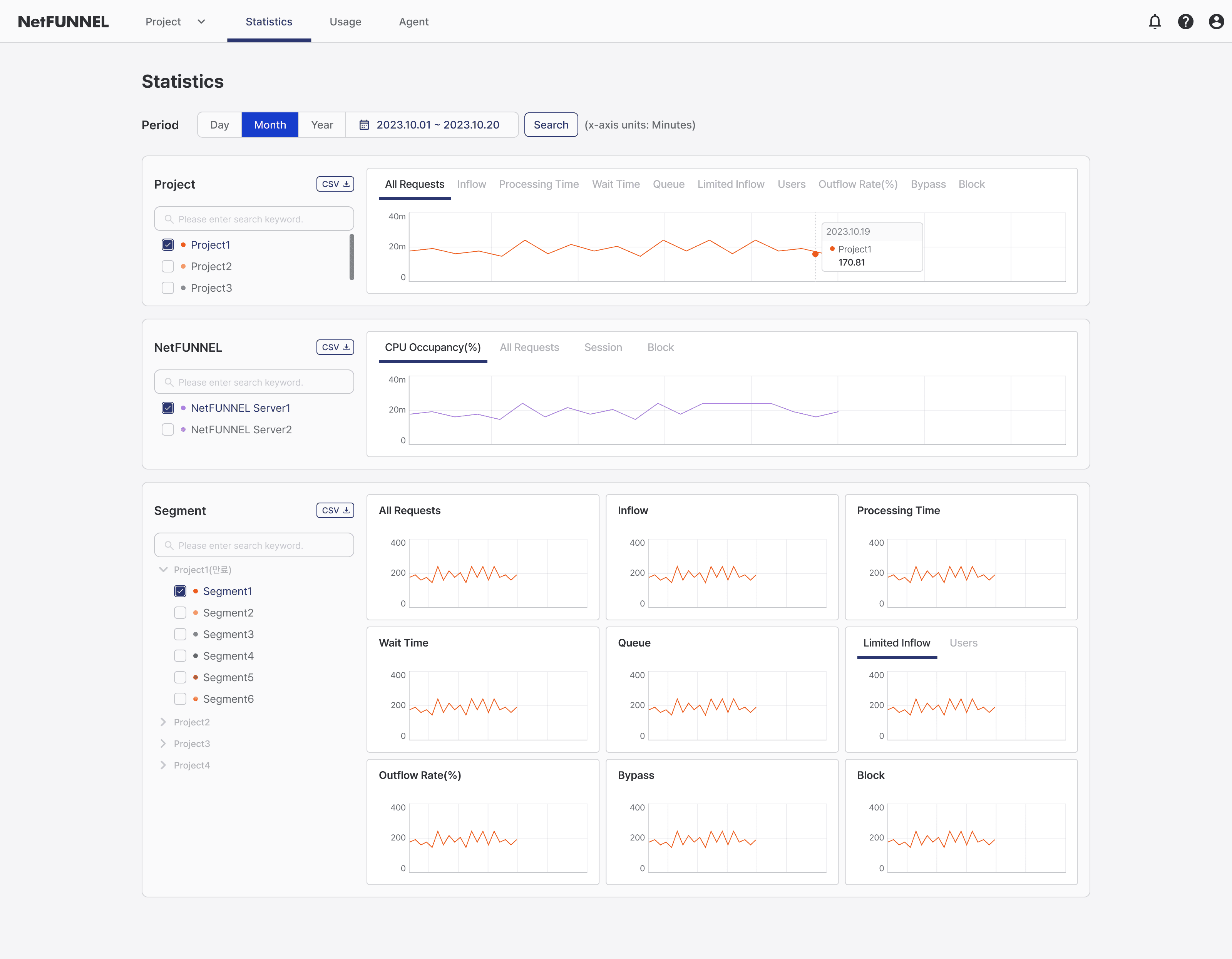

Screen Composition
Inquiry Period
You can set the period for data inquiry. (Day/Month/Year)
Project
You can check the numerical data of the projects established, and by selecting a project and clicking on the desired data, data for the specified date will be displayed.
NetFUNNEL Operation Information
Displays the service status of the currently operating NetFUNNEL.
Segment Information
You can check the status of traffic control for each created segment. NetFUNNEL provides the following details. Check the items provided in the data and refer to them for service operation:
- Total Requests: Displays the number of requests sent to check the status of visitors who have entered the waiting state.
- Entry Requests: Displays the volume of entry requests collected per minute by the segment.
- Processing Time: Displays the average time it takes for a visitor's completion request to be sent to the NetFUNNEL server and verified after entry.
- Waiting Time: Displays the average time a visitor waits from entering the NetFUNNEL waiting room to service access.
- Number of Waiters: Displays the number of visitors waiting after an entry request.
- Limited Inflow: Displays the maximum value of limited inflow which has been set for the segment.
- Users: Displays the total number of visitors who entered through the Basic/Section Control segments.
- Completion Rate: Displays the percentage of visitors who successfully entered the service, exited, and ultimately completed the traffic control process.
- Blocked/Bypassed: Displays the number of users collected after the segment status was changed to blocked or bypassed.
